Description:

Racers with high compression naturally aspirated engines or boosted engines who are looking for an alternative to boost dependent water/methanol injection controllers have a solution in AEM's Multi-Input WMI controller. The multiple input design enables users to install AEM’s Water/Methanol Injection Kit on both high compression naturally aspirated vehicles (NA) via the MAF/IDC settings and ultra-high boost vehicles (above 35 PSI) using an external MAP sensor. The Multi-Input controller works with an external 0-5v voltage-based external MAP sensor, a frequency based input for Injector Duty Cycle (IDC), frequency-based mass airflow (MAF), or a 0-5v voltage-based MAF. The Multi Input controller is offered in three kits; a one-gallon tank kit with a single injector for gas engines (PN 30-3350), a tank-less kit with a single injector (PN 30-3352), and a five-gallon tank kit with two injectors (PN 30-3351) for HD Diesel and high output gasoline applications.

THE AEM WATER/METHANOL INJECTION SYSTEM ADVANTAGE
Water/methanol injection for gas engines is a proven means for effectively reducing engine inlet air temperatures and suppressing harmful detonation on forced induction and high compression naturally aspirated (NA) race engines. This allows racers to reliably increase boost and advance ignition timing—without using high-octane racing fuel—for power gains of up to 20%. AEM’s Water/Methanol Injection Systems utilize the most robust hardware combined with more advanced features than any other comparably priced water/methanol system.

WATER/METHANOL INJECTION ADVANTAGES FOR GAS ENGINES:

Reduces Air Inlet Charge Temps
The term “liquid intercooling” with water/methanol injection refers to a highly atomized mist of water/methanol that is injected into the airstream and begins to evaporate. As it does, this evaporative effect reduces air charge temps by as much as 100 degrees, and delivers a more oxygen-rich air charge.

Reduces Detonation (Knock)
Water absorbs heat, and methanol is a cool burning, anti-knock rated fuel. When combined and introduced into the inlet stream, they can effectively increase your vehicle’s anti-knock index so you can reliably increase boost pressure and advance ignition timing using pump gas.

Reduces Carbon Deposits
Modern vehicles fitted with Exhaust Gas Recirculation (EGR) devices for emissions control promote heavy carbon build up inside the air intake. This carbon build-up can create ‘hot spots’ in the combustion chambers that can cause detonation. Water/methanol injection has a ‘steam cleaning’ effect that reduces this carbon build up, and in some cases can increase fuel economy.

WATER/METHANOL INJECTION ADVANTAGES FOR DIESEL ENGINES:

Reduces Air Inlet Charge Temps
Water/methanol’s “liquid intercooling” effect on turbo Diesel engines can reduce air charge temps by as much as 100 degrees, and deliver a more oxygen-rich air charge.

Enhances Combustion & Efficiency
In addition to cooling air inlet temps, as the water absorbs heat in the combustion chamber and converts to steam, the steam’s expansion rate increases the mean effective cylinder pressure without causing dangerous pressure spikes. This effective increase in cylinder pressure combined with methanol’s promotion of complete combustion allows your Diesel engine to burn fuel more completely. When fuel is being burned more completely less is wasted, which can increase fuel economy.

REDUCES EXHAUST GAS TEMPERATURES (EGTs)
Because Diesel vehicles using water/methanol injection burn fuel more completely, less un-burnt fuel is present in the exhaust manifold where it can flash ignite to increase EGTs and create particulate matter (soot). Water/methanol injection eliminates this secondary combustion of raw fuel in the exhaust manifold to reduce EGTs by up to 250 degrees, and reduces harmful particulates to extend engine life (and that expensive particulate filter).

STOP! THIS PRODUCT HAS LEGAL RESTRICTIONS. READ THIS BEFORE INSTALLING/USING!

WARNING!

THIS IS A RACE ONLY PRODUCT MANUFACTURED AND SOLD FOR INSTALLATION ON VEHICLES DESIGNED TO BE USED SOLELY FOR COMPETITION PURPOSES. ONCE THIS PART IS INSTALLED, THE VEHICLE MAY NEVER BE USED, OR REGISTERED OR LICENSED FOR USE, ON A PUBLIC ROAD OR HIGHWAY. IF YOU INSTALL THIS PART ON YOUR VEHICLE AND USE THE VEHICLE ON A PUBLIC ROAD OR HIGHWAY, YOU WILL VIOLATE THE CLEAN AIR ACT AND MAY BE SUBJECT TO PERSONAL CIVIL OR CRIMINAL LIABILITY, INCLUDING FINES OF UP TO $4,819 PER DAY.

IT IS THE RESPONSIBILITY OF THE INSTALLER AND/OR USER OF THIS PRODUCT TO ENSURE THAT IT IS USED IN COMPLIANCE WITH ALL APPLICABLE LAWS AND REGULATIONS. IF THIS PRODUCT WAS PURCHASED IN ERROR, DO NOT INSTALL AND/OR USE IT. THE PURCHASER MUST ARRANGE TO RETURN THE PRODUCT FOR A FULL REFUND.

THIS POLICY ONLY APPLIES TO INSTALLERS AND/OR USERS WHO ARE LOCATED IN THE UNITED STATES; HOWEVER, CUSTOMERS WHO RESIDE IN OTHER COUNTRIES SHOULD ACT IN ACCORDANCE WITH THEIR LOCAL LAWS AND REGULATIONS.

WARNING:
Misuse or improper tuning of this product can destroy your engine! If you are not well versed in engine dynamics DO NOT attempt the installation. Refer the installation to an AEM-trained tuning shop or call 800-423-0046 for technical assistance.

NOTE: IT IS THE RESPONSIBILITY OF THE ENGINE TUNER TO ULTIMATELY CONFIRM IF THE CALIBRATION IS SAFE FOR ITS INTENDED USE. AEM holds no responsibility for any engine damage that results from the misuse or mistuning of this product!

Important Safety Notice Regarding Methanol

AEM Water/Methanol Injection Systems are chemically compatible with a mixture of water and methanol, which we strongly recommend does not exceed a concentration of more than 50% methanol. In addition to inherent dangers of using 100% methanol, doing so will damage the system's flow sensor and void the warranty on this component.

Methanol is a toxic and highly flammable chemical. 100% Methanol ignites easily and burns vigorously with an almost undetectable flame. Methanol can be absorbed through the skin and even small amounts can cause blindness or even death. Using this fluid at high pressures, without dilution, in an under-hood environment with nylon lines and push-to-connect fittings is very unsafe. The performance advantages of using greater than 50% methanol concentrations are small, if they exist at all. However, the safety issues are very real and far outweigh any perceived benefit of running high concentrations of methanol.

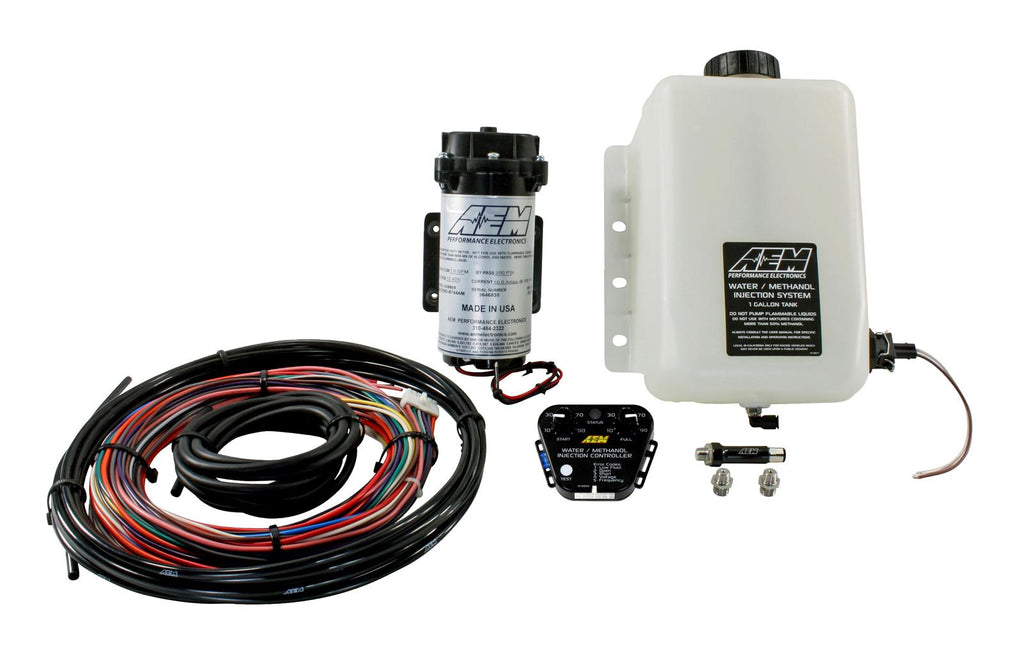

V2 Water/Methanol Injection Kit, Multi Input Controller - 0-5v/MAF Frequency or Voltage/Duty Cycle/Ext MAP, 200psi WM Pump, 1 Gallon Reservoir, Conductive Fluid Level Sensor
